How to use VPN
Dec 11, 2020
1. PPTP

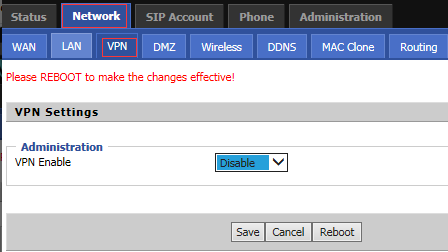

“Network-->VPN-->VPN Settings”

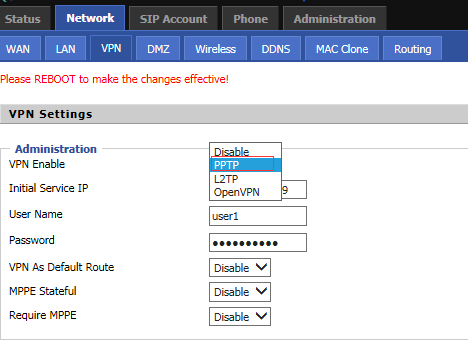

VPN Enable select PPTP

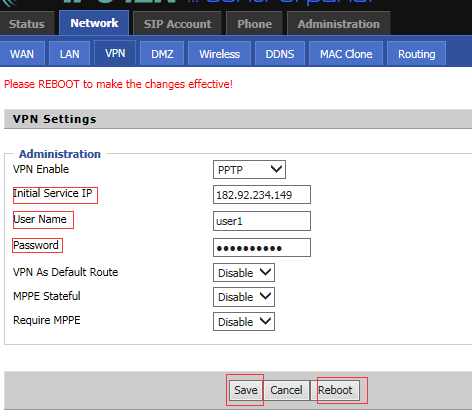

Enter Initial Service IP，User Name，Password.
Click Save then Reboot device.
Result
“State-->Basic->VPN Status”，Get a Virtual IP Address.
2. L2TP

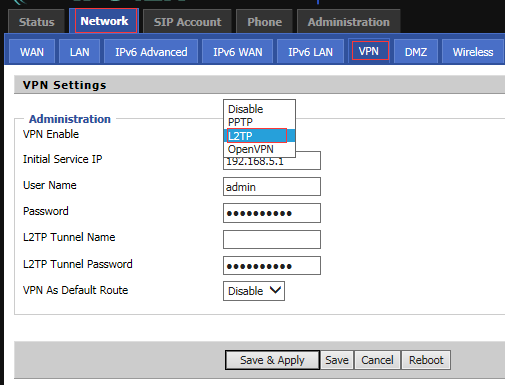

VPN Enable select L2TP

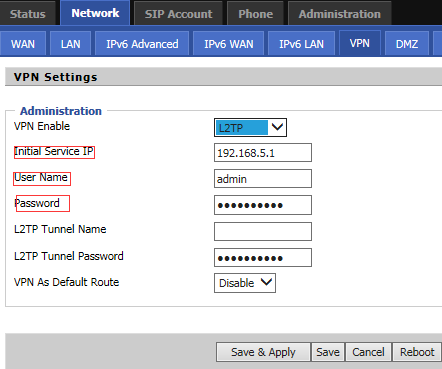

Enter Initial Service IP，User Name，Password.
Click Save then Reboot device.
Result
“State-->Basic->VPN Status”，Get a Virtual IP Address.
3. SIP Register via VPN
If you want to regist via virtual server add, you need config as following chart.

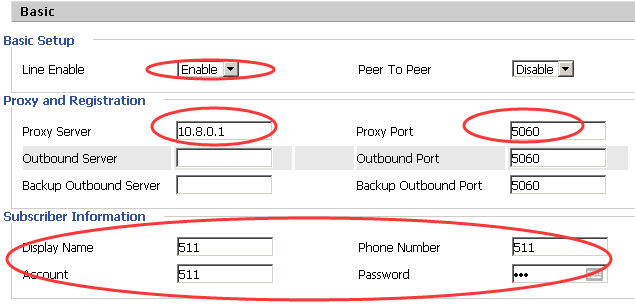

Firstly config sip account:

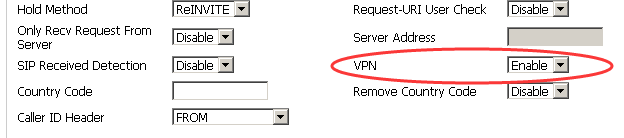

Second enable VPN in this way can you register via virtual address.
Save and reboot device, then you can see the registion status on WEB:
