1.Enable WPS

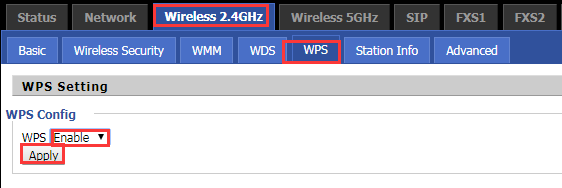

Login web GUI,”wireless--WPS”,Enable WPS,click apply.

2.WPS

（1）PBC mode

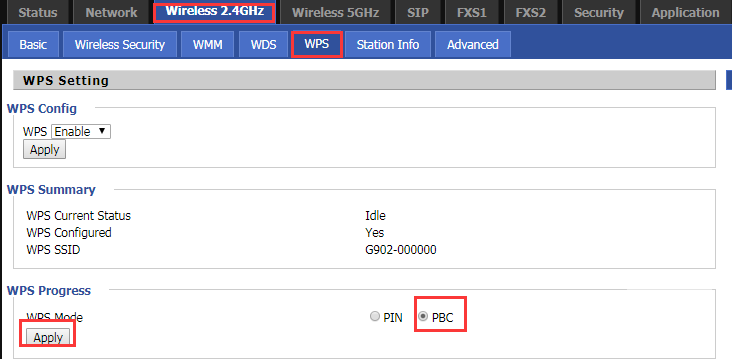

“wireless--WPS Progress”，check PBC，click apply.

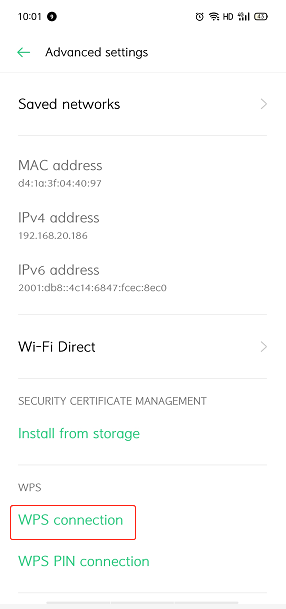

Cell Phone open the advanced settings, click on the "WPS connection", the phone can be connected to WPS wireless.

（2）PIN

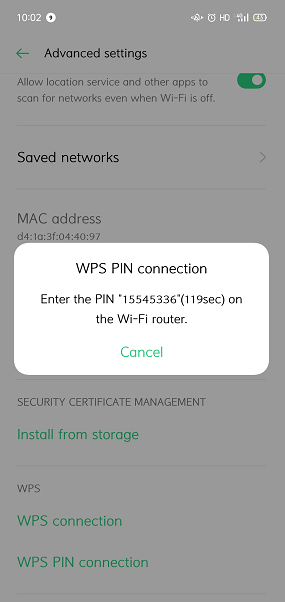

Cell Phone open the advanced settings, click on the "WPS connection", the phone will  generate PIN randomly.

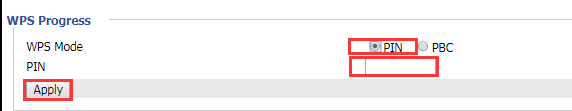

“wireless--WPS Progress”，check PIN，type cell phone generate PIN,click apply. the phone can be connected to WPS wireless.
