How to use L2TP server function?
Dec 11, 2020
1.L2TP Server Configuration

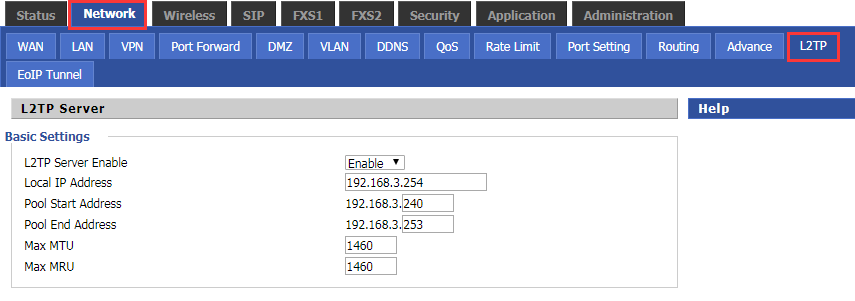

Login web GUI,go into “Network-->L2TP” page and Enable L2TP Server Enable.
You can set Local IP address,the Pool Start Address and Pool End Address are based on the Local IP address.

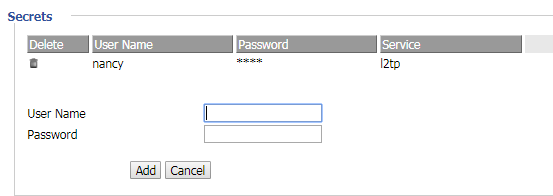

At “Network-->L2TP-->Secrets”，you can set L2TP client’s User Name and Password,then reboot.
2.L2TP Client Configuration

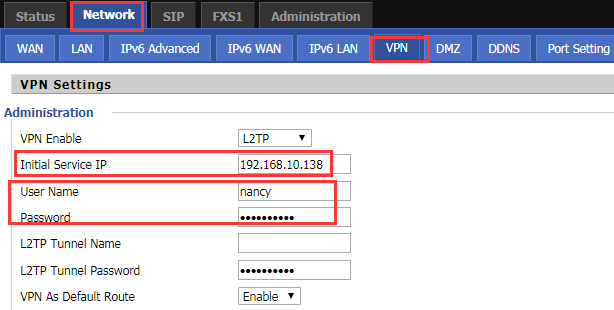

At“Network-->VPN”page
Initial Server IP is L2TP Server WAN port IP address
type user name and password which configured in L2TP Server.

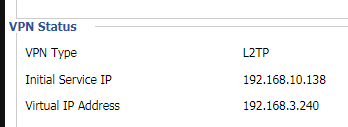

You can check VPN Status.
