CPC Application - Answering Machine
Release time:Dec 26, 2017
Background
CPC is a function of our Device: his role is in the call when the other hang up after the answering machine also hang up

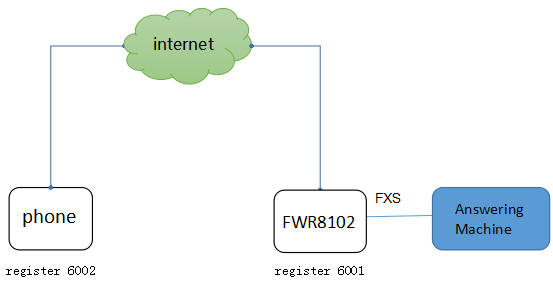

Topology
Application
1. Configure the gateway in the gateway WEB, as shown
Note：The value here is set to a small but not zero value (for example, 1)，if we set 0 or 0.5 ,CPC does not work
2. In this application environment, 6002 dial 6001, answering machine automatically answer the phone, 6002 hang up, answering machine automatically hang up

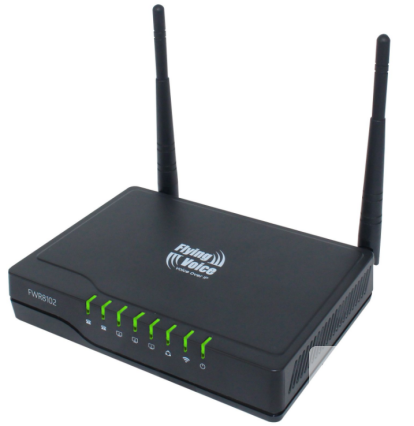

Product Recommendation--FWR8102
• 4 100M RJ45 ports, 2 FXS RJ11 ports
• 2.4GHz 300Mbps Wi-Fi
• Rich QoS capability in wired and wireless
• Real time FAX over IP via T.38 and T.30 FAX with G.711
• PESQ is above 4.3 in G.711, PESQ is above 3.7 in G.729
• Auto-Provisioning TFTP/HTTP/HTTPS, TR069, SNMP
