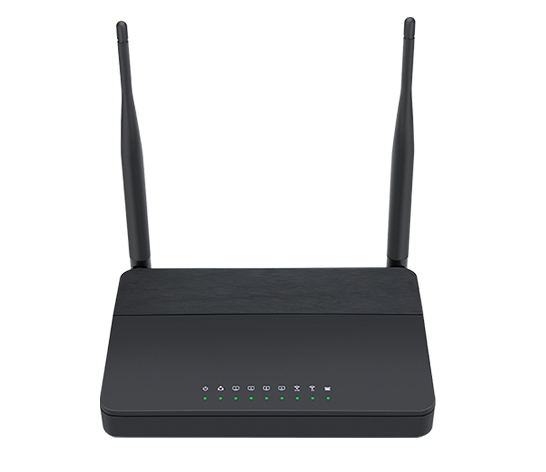

FWR9601
Enterprise Dual-band Gigabit Wireless VoIP Router
Enterprise Dual-band Gigabit Wireless VoIP Router
With VoIP and routing functions, FWR9601 is a feature-rich router. It is suitable for SMBs to create wireless offices.
-
5x10/100/1000M -
1 FXS Port -
HNAT -
2.4GHz&5GHz Wi-Fi -
TR069 & SNMP -
T.38 & T.30 -
QoS

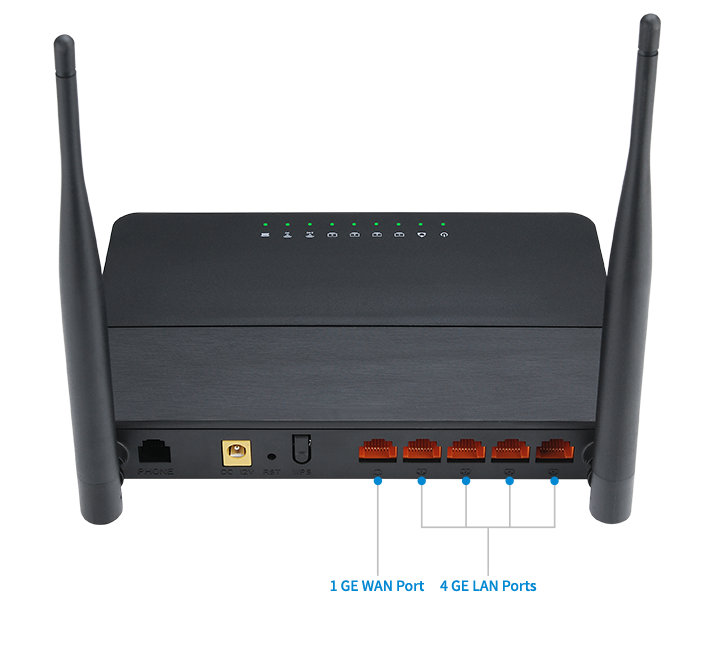

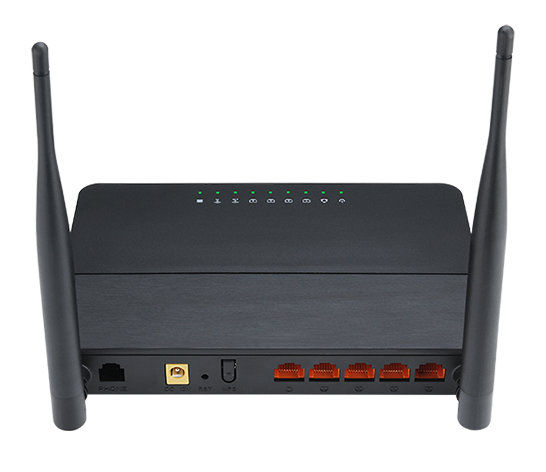

Gigabit Ethernet Port
5*10/100/1000M Gigabit Ethernet ports provide reliable and high-speed network, transmitting and receiving data smoothly.

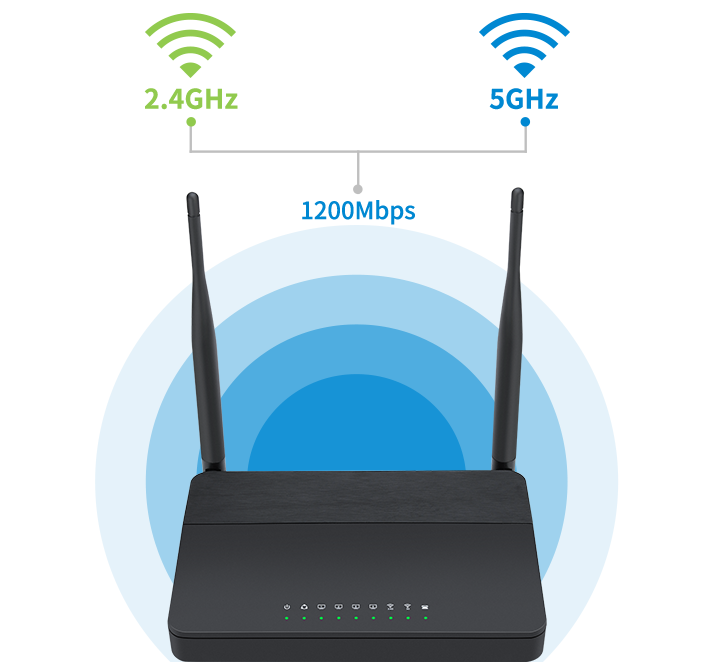

Dual-Band Wi-Fi
FWR9601 supports 802.11ac and delivers up to 1200 Mbps. Dual-band 2.4 GHz and 5 GHz Wi-Fi can reduce interference, ensure transmission quality, and enhance data throughput.

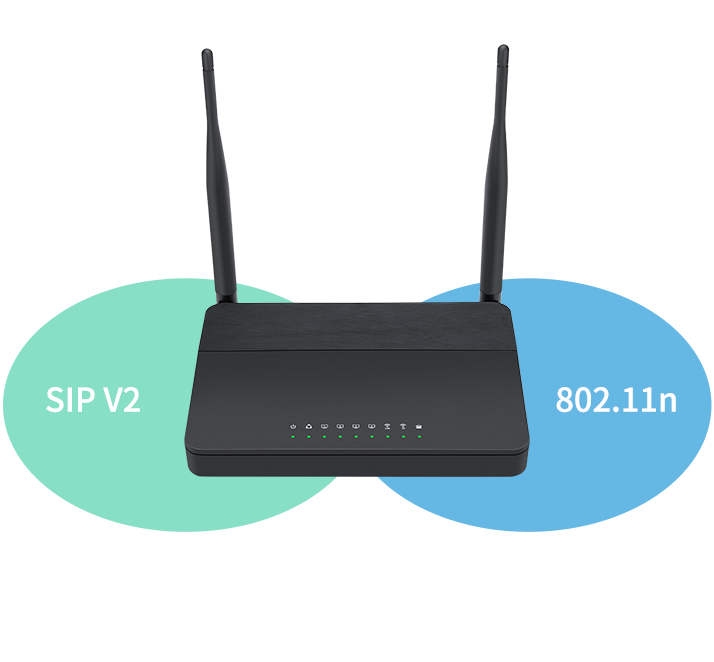

Broad Compatibility
The FWR9601 is based on SIP V2 and 802.11n standard and compatible with most service providers, which brings great convenience when deploying VoIP network.

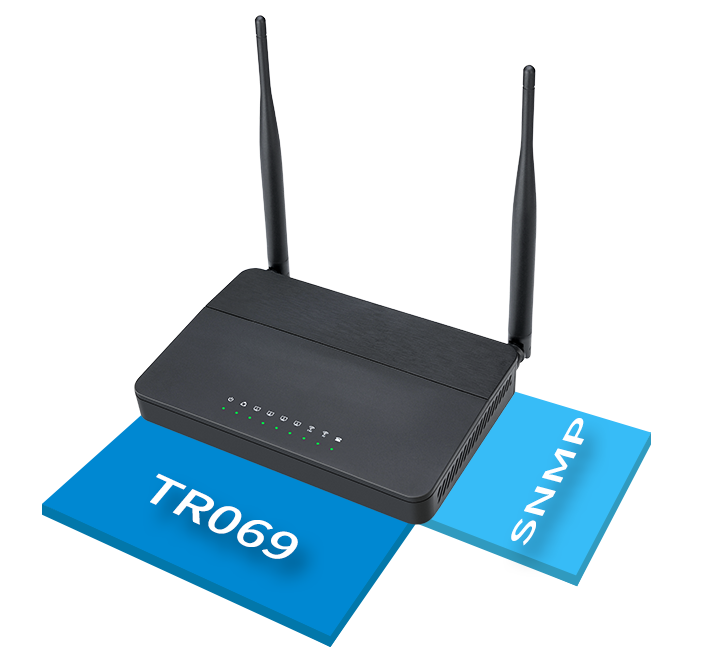

Easy Management
Equipped with advanced management protocols such as SNMP and TR069, which is easy to achieve unified deployment and centralized management.
Specifications
-
1 FXS Port
-
2.4GHz & 5GHz Dual-band Wi-Fi
-
5*10/100/1000 Mbps
-
Support HNAT
-
Support T.38 & T.30
Related Products
Comparison
| FXS (RJ11) |
| FXO (RJ11) |
| Ethernet (RJ45) |
| 2.4GHz Speed |
| 5GHz Speed |
| 4G-LTE |
| USB Port |
| HNAT |
| MU-MIMO |
| SNMP |
| TR069 |
| VLAN |
| VPN |
| FAX |
| Voice Codec |
| SIP Protocol |
| Auto Provision |
| Web Management |
| FWR7302 | FWR7102 | FWR9601 | FWR8101 | FWR8102 | FPX9102H | |
|---|---|---|---|---|---|---|
 |  |  |  |  |  | |
| FXS (RJ11) | 2 | 2 | 1 | 1 | 2 | X |
| FXO (RJ11) | X | X | X | X | X | 2 |
| Ethernet (RJ45) | 5*10/100/1000M | 4*10/100M | 5*10/100/1000M | 4*10/100M | 4*10/100M | 5*10/100/1000M |
| 2.4GHz Speed | 300Mbps | 300Mbps | 300Mbps | 300Mbps | 300Mbps | 300Mbps |
| 5GHz Speed | 867Mbps | X | 867Mbps | X | X | 867Mbps |
| 4G-LTE | √ | √ | X | X | X | X |
| USB Port | 1 | X | X | X | X | 1 |
| HNAT | √ | √ | √ | X | X | √ |
| MU-MIMO | X | X | X | X | X | X |
| SNMP | √ | √ | √ | √ | √ | √ |
| TR069 | √ | √ | √ | √ | √ | √ |
| VLAN | √ | √ | √ | √ | √ | √ |
| VPN | PPTP, L2TP, OpenVPN | PPTP, L2TP, OpenVPN | PPTP, L2TP, OpenVPN | PPTP, L2TP, OpenVPN | PPTP, L2TP, OpenVPN | PPTP, L2TP, OpenVPN |
| FAX | T.38, T.30 | T.38, T.30 | T.38, T.30 | T.38, T.30 | T.38, T.30 | X |
| Voice Codec | G.722, G.711(A/u), G.723, G.729A/B, iLBC | G.722, G.711(A/u), G.723, G.729A/B, iLBC | G.722, G.711(A/u), G.723, G.729A/B, iLBC | G.722, G.711(A/u), G.723, G.729A/B, iLBC | G.722, G.711(A/u), G.723, G.729A/B, iLBC | G.722, G.711(A/u), G.723, G.729A/B, iLBC |
| SIP Protocol | SIPV2.0 （RFC3261/3262/3263/3264） | SIPV2.0 （RFC3261/3262/3263/3264） | SIPV2.0 （RFC3261/3262/3263/3264） | SIPV2.0 （RFC3261/3262/3263/3264） | SIPV2.0 （RFC3261/3262/3263/3264） | SIPV2.0 （RFC3261/3262/3263/3264） |
| Auto Provision | TFTP, HTTP, HTTPS | TFTP, HTTP, HTTPS | TFTP, HTTP, HTTPS | TFTP, HTTP, HTTPS | TFTP, HTTP, HTTPS | TFTP, HTTP, HTTPS |
| Web Management | √ | √ | √ | √ | √ | √ |
